PRODUCT - REFRIERATED SEAWATER SYSTEMS

HOME / PRODUCTS / REFRIGERATED SEA WATER SYSTEM

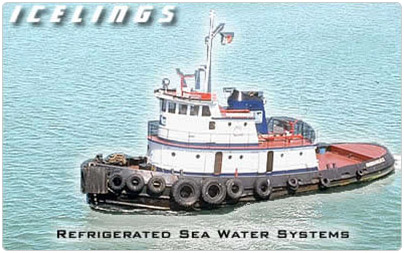

WITH ICELINGS- REFRIERATED SEAWATER SYSTEMS GO DEEP INTO THE SEA

Today’s fishing industry grows more competitive with every catch. Distances become greater. Quality demands increase. To not only survive, but to maximise profits, it is essential to utilize the best technology and finest equipment available. Whether it is a small boat or a large fishing vessel, Icelings has the latest technology backed by our own experience in the fishing industry, to provide Refrigerated Sea Water Systems-RSWs systems that are custom designed and built according to customers requirements. Icelings has designed and installed Refrigerated Sea Water Systems for a large number of fishing vessels in India. At Icelings we provide the best quality equipment, which can survive the harshness of marine environment. We know how to help fishermen get their catch to market with the highest quality and profit.

Refrierated seawater systems

IMPORTANCE OF REFRIGERATED SEAWATER SYSTEM

THE VALUE OF INDEPENDENCE: With either spray or flooded RSW systems, vessel owners can achieve maximum flexibility in marketing seafood. Further RSW systems give freedom from the availibility and supply of ice and also give the freedom of travelling much further to reach the optimum price buyer.

QUALITY DIFFERENCE: Seafood quality is directly related to the speed with which the product is chilled after harvest. RSW systems not only chill the catch quickly and uniformy, but maintain that ideal temperature environment over the length of a voyage. The result is more value, and more freedom in landing that catch in the best ports.

LESS WORK LESS WEIGHT: A further advantage of the RSW system is on board. Because the RSW eliminates the slow and fatiguing work of shoveling ice and layering fish, the boat crew is more efficient. On smaller vessels with spray systems the bulk and weight of ice is eliminated conserving fuel and increasing speeds.

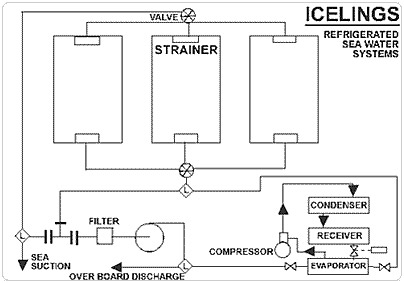

HOW IT WORKS?



The purpose of the RSW system is to remove heat from the seafood products as fast as possible into the evaporator and discharge the heat overboard through the condenser.

The refrigerant as low pressure is compressed to high pressure by compressor. The hot vapour passes through an oil seperator and is then cooled which causes it to become liquid in the condenser. Liquid refrigerant, at high pressure, flows into a holding tank called as a receiver. After which it passes through a filter drier and heat exchanger valve which meters the high pressure liquid as it rapidly drops to low pressure. This very low pressure liquid enters the evaporator where it gains heat and boils into a vapour. As the low pressure returns to the compressor it passes through a suction accumulator where any unvapourized liquid accumulates.

The heart of the Icelings RSW systems is the use of marine flooded chiller. These units are Shell and Tube designs featuring easy to remove heads for cleaning. Heat transfer is the most efficient in it’s class and the chillers are designed to handle the high water flow rates required for optimum exchange of the hold water.

Sea water strainers are provided to reduce fouling problems.

Water flow and refrigerant pressure safety controls are standard for all RSW systems.

SALIENT FEATURES OF ICELINGS REFRIGERATED SEAWATER SYSTEMS

  • Each RSW system is custom designed and built
  • Little maintenance and reliability allow the fishermen to spend more time in fishing
  • Can refrigerate a wide range of seafood products
  • Best quality equipment
  • Capable of withstanding even in the harsh marine environment
  • Latest technology backed by our own experience in the fishing industry, is used in making world class RSW Systems
